	A carton with a video screen, filling and closing equipment for parenteral products, and a flexible desiccant inserter represent just a few of the innovations that will be on display at Interphex (April 21-23, 2015, at the Javits Convention Center in New York City).


	To maximize interaction with consumers or caregivers, Rondo-Pak equips cartons with a thin, lightweight HD video screen-complete with sound. Multimedia cartons help introduce products, educate patients, train physicians, and support clinical trials and sales demonstrations. Acting as an engaging high-tech insert, the screen can present instructions for use, information on complementary therapies, customer support options, and answers to frequently asked questions. Alternate languages are another possibility. The carton also can include a digital watermark that can be scanned by a smartphone to deliver additional product information or special offers at point of purchase or use (1).


	New filling/closing systems for parenteral products will be on display. Optima pharma will feature the Optima H4 filling and closing system, with a modular design that combines simple operation, accessibility, and reliability with a compact footprint. The flexible system handles nested vials, syringes, or cartridges and can be equipped with rotary piston, peristaltic or time-pressure pumps and a variety of isolator options. A robot in the filling area also can open tubs and remove Tyvek papers, if required. Semiautomatic systems integrate easily, and retrofits boost output from 400 to 600 units per minute and upgrade in-process controls for vacuum filling and vacuum-stopper insertion (2).

	PennTech plans to introduce its FSC-1R vial filling/stoppering/capping machine. The compact rotary unit handles vials sizes from 2 to 100cc at up to 50 vials per minute. Peristaltic pump filling technology relies on driven rollers with statistical or net-weigh in-process control options (3).

	PennTech also intends to exhibit EVW-Series exterior vial washers. These in-line decontamination systems neutralize and wash vials while protecting the caps from moisture. The wash process minimizes rejects during subsequent inspection and eliminates drug residue that could pose a hazard to operators or consumers. The EVW-60 model handles vials ranging from 2 to 100 mL at rates up to 200 vials/min and can be integrated into the filling line or serve as a standalone unit. The faster EVW-100 model accommodates a broader range of vial sizes (2 to 500 mL) and cleans up to 450 vials/min. No change parts are needed to switch between 13-mm and 20-mm caps. Container size changes require a five-minute, tool-less swap of infeed and outfeed timing screws (3).

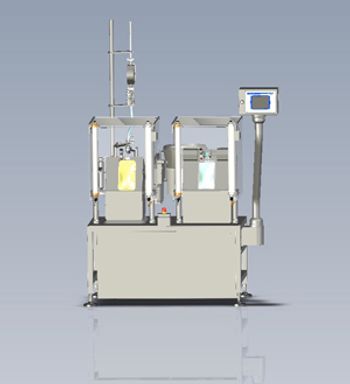

					The Type 529 semiautomatic filling and closing machine from Bausch Advanced Technology Group handles a range of intravenous bag sizes. Image courtesy of Bausch Advanced Technology Group.

	For aseptic packaging of infusions, parenteral drugs, and other pharmaceutical and biotech fluids, the second generation Type 529 semiautomatic IV [intravenous] bag filling and closing machine from Bausch Advanced Technology Group handles bags made of any material and volumes from 10 mL to 10 L at up to 26 bags/min. Higher speeds can be achieved by adding semiautomatic filling/closing stations. The basic machine accommodates up to four filling/closing stations without altering its footprint, electronics, in-process control, or operator interface. The updated design offers a clear laminar air-flow path to the open bag and is well-suited for isolators or restricted access barrier systems. The flexible unit also is compatible with a variety of filling technologies including mass flow, peristaltic pump, servo-operated pinched valve, and rotary piston pump. The automated closing system can be adapted to many closure types (for hard ports or flexible tubing) and sealing technologies (e.g., high-frequency, ultrasonic, heat). For highly sensitive products, the Type 529 machine can be equipped with an air evacuating and pre- and/or post-gassing system. Other options include an integrated clean- or sterilize-in-place system. Type 529 machines can be combined with semiautomatic IV bag inspection machines as well as checkweighers and leak testers (4).


	For solid dosage forms, BellatRx is displaying its Rx-Desiccant Plus automatic desiccant inserting machine. Capable of handling either precut pouches or canisters, the unit reaches speeds up to 140 containers/min (5).

	Other intriguing innovations expected to be on display at Interphex include Schreiner MediPharm’s tamper-evident Flexi-Cap. The label/cap combination clearly indicates if a container has been opened, discouraging illegal reuse (6).

		Rondo-Pak, “Rondo-Pak Introduces Multi-media Carton with HD Video Screen for Pharma & Personal Care Products,” Press Release, Sep. 24, 2014.

		Interphex, Reed Exhibitions, “Optima pharma to Premier H4 at Interphex 2015,” Press Release, Mar. 24, 2015.

		Interphex, Reed Exhibitions, “PennTech to Launch New Technologies at Interphex,” Press Release, Mar. 19, 2015.

		Bausch Advanced Technology Group, “Bausch Advanced Technology Group Introduces New Generation of IV Bag Filling and Closing System,” Press Release, Jan. 14, 2015.

		BellatRx, “Equipment Running at Interphex,” Email, Mar. 24, 2015.

		Schreiner MediPharm, " Schreiner MediPharm Develops Label + Cap Combination Providing Protection from Counterfeiting for Vials and Bottles," Press Release, June 5, 2014.

Articles

Packaging

Innovations include multimedia packaging and improved filling systems.

Packaging Innovations on Display at Interphex

 	In a typical freeze-drying cycle, a product is placed in vials and dried on a shelf in a freeze dryer by first lowering the temperature sufficiently to ensure that the product is completely frozen. In the subsequent primary drying phase, the chamber pressure is reduced to induce sublimation of the frozen solvent (see

). A secondary drying phase is performed to achieve the required dryness. 	 	The key characteristics of a freeze-drying cycle are the temperature and pressure gradients. The behavior of a product as it dries, however, is affected by many additional factors, such as vial size, condenser volume, product purity, batch size, and equipment specifications. The following aspects should be considered when designing a freeze-drying cycle and choosing freeze-drying equipment.

	There are three main factors to consider when optimizing the freezing stage of the cycle: the product must be fully frozen; the ice crystal structure should be open to aid sublimation; and complete freezing should be achieved at as high a temperature as possible to save time and energy. Annealing and controlled nucleation can help create optimal freezing conditions.

Freeze dryers can be programmed to incorporate multiple ramp and hold functions to achieve the required frozen structure. Some programs use an annealing process, which is a technique of raising and lowering the temperature over a range of a few degrees to control the freezing.

 Studies have shown that with uncontrolled nucleation, the drying time for the last vial to nucleate could be almost 20% longer than the first vial and 45% longer than a vial made to freeze close to its thermodynamic freezing point by controlled nucleation (1). Controlled nucleation techniques (e.g., ControLyo by Praxair) make it possible to induce freezing at the maximum safe temperature for the product. For every 1°C increase in the nucleation temperature, primary drying time can be reduced by as much as 3-4%, and the overall time to freeze the product can be reduced (1).

Supercooling is a phenomenon in which the product is cooled below its freezing temperature without ice forming, resulting in unpredictable freezing behavior that may be several tens of degrees below the measured thermodynamic freezing temperature. Because ice crystals require a nucleating point in order to form, supercooling is likely to occur in ultra-filtered pharmaceutical formulations. Controlled nucleation is a useful method for controlling this behavior.

	Most common laboratory pumps, such as single-stage pumps, diaphragm pumps and central vacuum systems, are powerful enough for freeze-drying applications. Most freeze dryers require a pump with an achievable vacuum of the order of <1 Mtorr, measured directly at the pump, according to pump manufacturer data. This vacuum will provide close to 100% of the pumping-speed performance across the typical working range of freeze-drying vacuum requirements. If the freeze-drying system is specified correctly, then the condenser will trap all condensable vapors, and the pump will provide initial pulldown and maintain set vacuum. Vacuum-pump maintenance is often overlooked, but it is one of the more important day-to-day tasks that users can complete simply and easily to ensure the long-term performance of the freeze dryer.

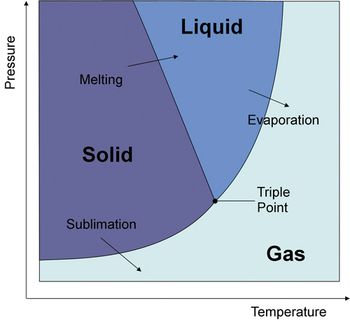

		The sublimation of ice crystals during the primary drying phase occurs due to the combination of vacuum pressure and temperature (see
