Conventionally, the term “overkill cycle" in validation of a steam-sterilization autoclave process is understood to mean that all items were steamed beyond all hope of anything surviving a grossly exaggerated load cycle. This cavalier approach to sterilization validation, however, is no longer enough to satisfy most regulatory inspectors, who have grown accustomed to control strategies based on risk assessment and scientific rational for the mitigation of the identified risks. A more robust, quality-by-design philosophy based in sound science and process understanding is more appropriate and defendable.

  A key component when presenting any autoclave validation package is to be able to clearly defend how the requirement to correlate biologic and physical lethality data from the validation reports is satisfied (1). Fulfilling this requirement can provide sound justification for autoclave critical process parameters (CPPs) and how they were validated.

 Development work to justify load parameters


When claiming overkill sterilization, one must be careful to have a good scientific rationale for the choice of cycle parameters. Just choosing the time and temperature on a cycle without detailed assessment does nothing to demonstrate control or knowledge of the critical operating parameters of the autoclave cycle or how those are affecting your particular load conditions. Theoretical values cannot be assured throughout a load before mapping with thermocouples is done to assure air removal and equilibration times support these assumptions.

 It is necessary to compare theoretical F

s (i.e., lethality levels) with the actual F

s delivered in an actual cycle. This real development testing will give a good idea of performance and capability of the autoclave and allow for realistic program-parameter settings.

It may be appropriate to add some time or temperature as a safety factor to account for all of the variables inherent to autoclaving items needed in a manufacturing process. Unknown incoming bioburden load is a reasonable driver to choose an overkill sterilization cycle. However, gross overage indicates a lack of control of the process and a lack of understanding of the appropriate lethality being delivered to load items. Delivered lethality should be well understood from development runs and applied judiciously, even in overkill cycles, in order for validation to be a credible assurance of process functionality.

Fractional cycles as a method of validating overkill cycles

s throughout loads have been determined in development studies, program parameters may be defined for the autoclave cycles. At this stage, it may be appropriate to use fractional validation load programs, for which the validation cycle program delivers an F

 close to values needed to inactivate the BIs. The successful completion of this fractional cycle then gives a baseline to which a rational overage may be added for routine manufacturing cycles and justifies the term overkill (2).

 By defining a fractional (i.e., partial) cycle time and temperature for validation loads based on an understanding of the autoclave capabilities in conjunction with particular load limitations, an excellent rationale can be made, and manufacturing cycles can be programmed as overkill cycles. The overkill compensates for deviations in time or temperature caused by calibration faults in controlling thermocouples, chamber leaks, variability in packaging and assembling components, or other production events.


Any autoclave validation, for either overkill or product-specific load cycles, must demonstrate the delivered lethality to the most difficult locations using biological and physical data. More than being just a “dead or alive” reading, the bioindicator (BI) does enumerate delivered lethality when assessed appropriately. By knowing the D value of the BIs used and setting the fractional validation cycle to accommodate this value, inactivation can be achieved in the BIs and correlated to the thermocouple readouts. This validated cycle can then be appropriately increased to account for minor process variations to support a robust, validated process. This validation method, firmly based in the accepted tenets of sterilization science and a rational scientific approach, will provide a sound basis for an autoclave sterilization program.

 Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing

USP, General Chapter  <1211> "Sterilization and Sterility Assurance of Compendial Articles" (US Pharmacopeial Convention, Rockville, MD, 2013).

John Anderson is a quality assurance and validation professional with years of inspection experience. He can be reached at

This article is excerpted from an article on defining and presenting overkill cycle validation, which will appear in the Troubleshooting column of the November 2013 issue of

Articles

Troubleshooting

Parameters for steam-sterilization autoclave overkill cycles should be chosen based on process understanding.

Choosing Overkill Cycle Parameters

The North American market for drug-delivery technologies is projected to grow 8.9% per year through 2017, according to a report published by MarketsandMarkets (1). With such a positive forecast, it’s not surprising there is a constant flow of drug-delivery innovations involving metered-dose inhalers, needle-free injectors, autoinjectors, nasal sprays, transdermal patches, nebulizers, infusion pumps, drug-eluting stents, sustained-release formulations, ocular implants, and related packaging. Interest is particularly strong for dry powder inhalers, needle-free injectors, auto and pen injectors, orodispersible tablets, transdermal patches, and buccal transmucosal tablets, notes the report.

Suppliers are boosting capacity to meet rising demand in North America and around the world. In January 2013, Catalent Pharma Solutions announced a $20-million investment in its Inhalation Center of Excellence in Research Triangle Park, NC. The project will expand production capabilities for clinical and commercial pressurized metered-dose inhalers.

SHL Group (Sweden) is spending $40 million to expand production of autoinjectors and pen injectors in Taiwan. “Our customers are bringing more biologics to market,” explained Roger Samuelsson, chief executive officer of SHL, in a press release (2). SHL’s injector product range includes disposable and reusable devices with fixed or variable dosing, enhanced precision, and the ability to accommodate high-viscosity liquids. SHL also makes inhaler systems.

The need to accommodate biologics with higher viscosities and patients with limited dexterity prompted Unilife to develop the Unifill Assure injector. An extended finger flange with a soft, rubberized, non-slip grip and an easy-to-press thumb button on a strengthened plunger improve ergonomics. Compatible with standard fill/finish lines, features include automatic user-controlled needle retraction. The automatic needle retraction eliminates the need for ancillary needle sheath-based safety products, ensures patients have an unobstructed view of the drug from any angle during all stages of use, reduces the risk of needlestick injuries or the aerosolization (splatter) of blood or tissue residue, and helps minimize the size of the injector and waste disposal requirements. Audible, tactile, and visual indicators simultaneously confirm full-dose delivery and activation of the retraction mechanism. After retraction the plunger locks preventing reuse or needle re-exposure.

Ease of use is an important attribute for virtually all drug-delivery segments. For inhalation products, Aptar Pharma Prescription Division has developed the simple-to-use, easy-to-clean Twister dry-powder inhaler. Introduced at Pharmapack Europe, Feb. 13-14, 2013, in Paris, France, and also displayed at Pharmapack North America, June 18-19, 2013, in Philadelphia, the design improves access to medication as well as patient compliance. Molded and assembled in a class ISO 7 cleanroom at the company’s production facility in Suzhou, China, the device is suitable for early-phase clinical trials and for medication that treats asthma and chronic obstructive pulmonary disease. It works in three steps: insert, twist, and inhale. The twisting action crushes a capsule to release the drug. Patients can observe the processing of the capsule and powder through the transparent container and also receive audible and visual feedback confirming that the full dose has been properly delivered.

MarketsandMarkets, “North American Drug Delivery Technologies Market (Metered Dose Inhalers, Needle-Free Injectors, Auto-Injectors, Nasal Sprays, Transdermal Patches, Nebulizers, Infusion Pumps, Drug Eluting Stents, Sustained Release, Ocular Implants) – Forecasts To 2017,” (Dallas, TX, July 2013).

SHL Group, “SHL to Invest 40 Million USD in 2013 to Significantly Expand Production Facilities | Auto Injector, Pen Injector & Drug Delivery Devices,” Press Release, Feb. 22, 2013.

Hallie Forcinio is Pharmaceutical Technology's packaging editor,

Packaging

Capacity expansions and new products meet needs for inhaler and injector systems.

Drug-Delivery Market Growth Spurs Expansion and Innovation

A compact laboratory machine combines drying, granulating, and coating modules.

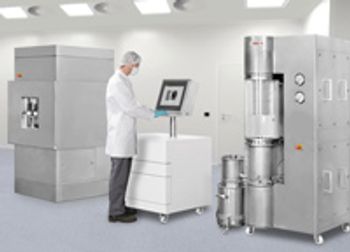

The Solidlab 2 laboratory device from Hüttlin and Manesty, pharmaceutical process technology suppliers that have been part of Bosch Packaging Technology since 2011, combines several process steps in a compact, modular laboratory machine. Modules for drying, granulating, and coating in the fluid bed, as well as tablet coating in the coater, can be used individually or in combination. The laboratory device includes peripheral systems, such as inlet and exhaust air handling, sensor technology, and a control system.
